Onchain Architecture - Overview (Aptos)
Aptos as Source Chain
On the Aptos source blockchain, a user or another module initiates a transaction by calling an entry function in the CCIP Router
module. The Router
module serves as the primary entry point, performing initial validations before forwarding the call to the appropriate OnRamp
module. The OnRamp
module then calculates fees, interacts with a designated Token Pool to lock or burn tokens, and finally emits a CCIPMessageSent
event. This event is observed offchain by the Committing DON, which then securely relays the message to the destination blockchain.
Aptos as Destination Chain
On the Aptos destination blockchain, an onchain module called the OffRamp
receives a commit
from the Committing DON. This commit
contains Merkle roots of batched messages. The OffRamp
module verifies the OCR signatures from the DON, checks the Risk Management Network (RMN) Remote module to ensure the source chain is not cursed, and then stores the verified Merkle root onchain. Subsequently, the Executing DON submits messages for execution. Aptos, like SVM, follows a one-message-per-transaction execution pattern, which is different from the batch execution possible on EVM chains. For each message, the OffRamp
verifies its Merkle proof against a committed root, tracks the execution state by emitting an ExecutionStateChanged
event, and processes the payload. This processing includes calling the appropriate Token Pool to release or mint tokens and, if the message contains data, calling the ccip_receive
entry function on a designated receiver module.
Key Components

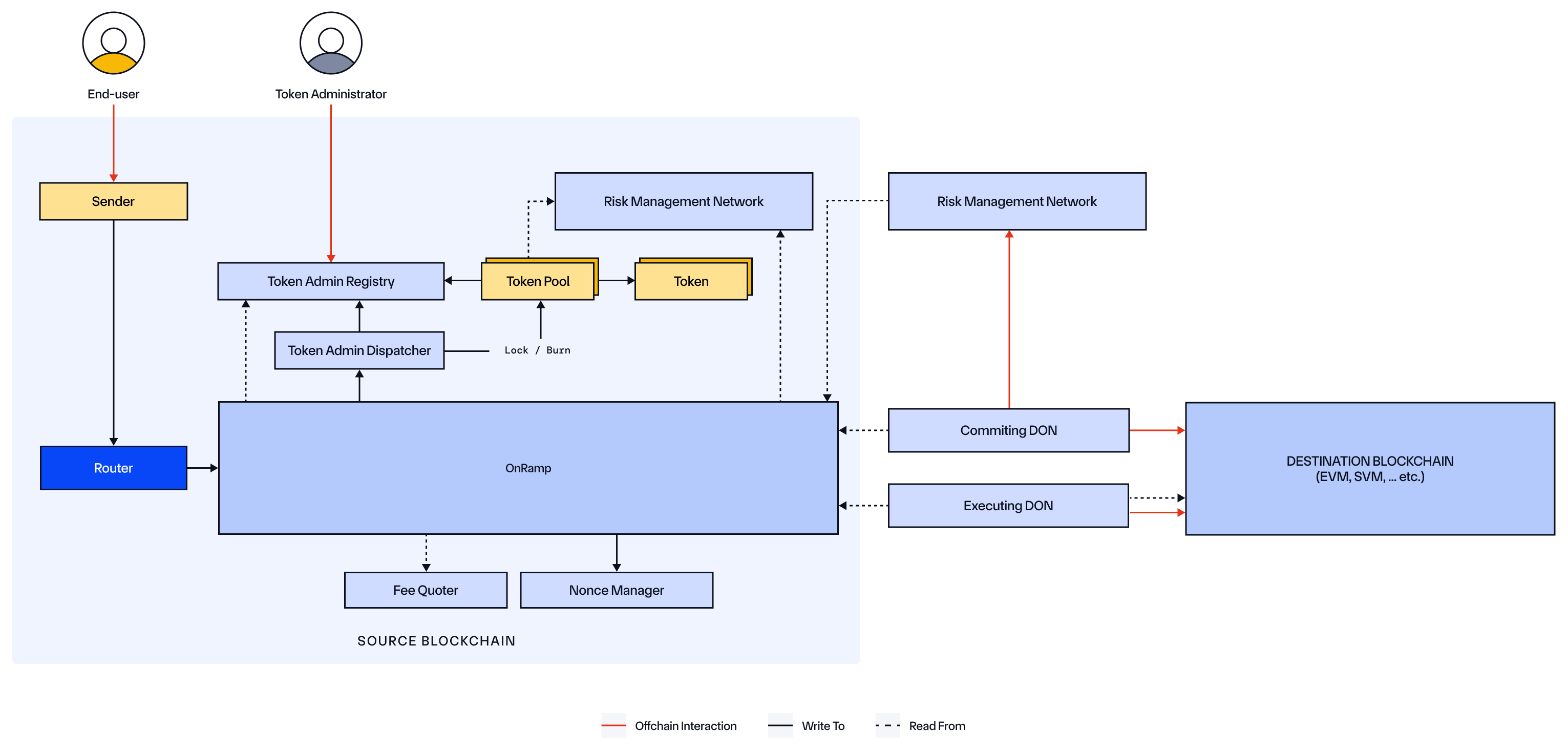

Source Chain:

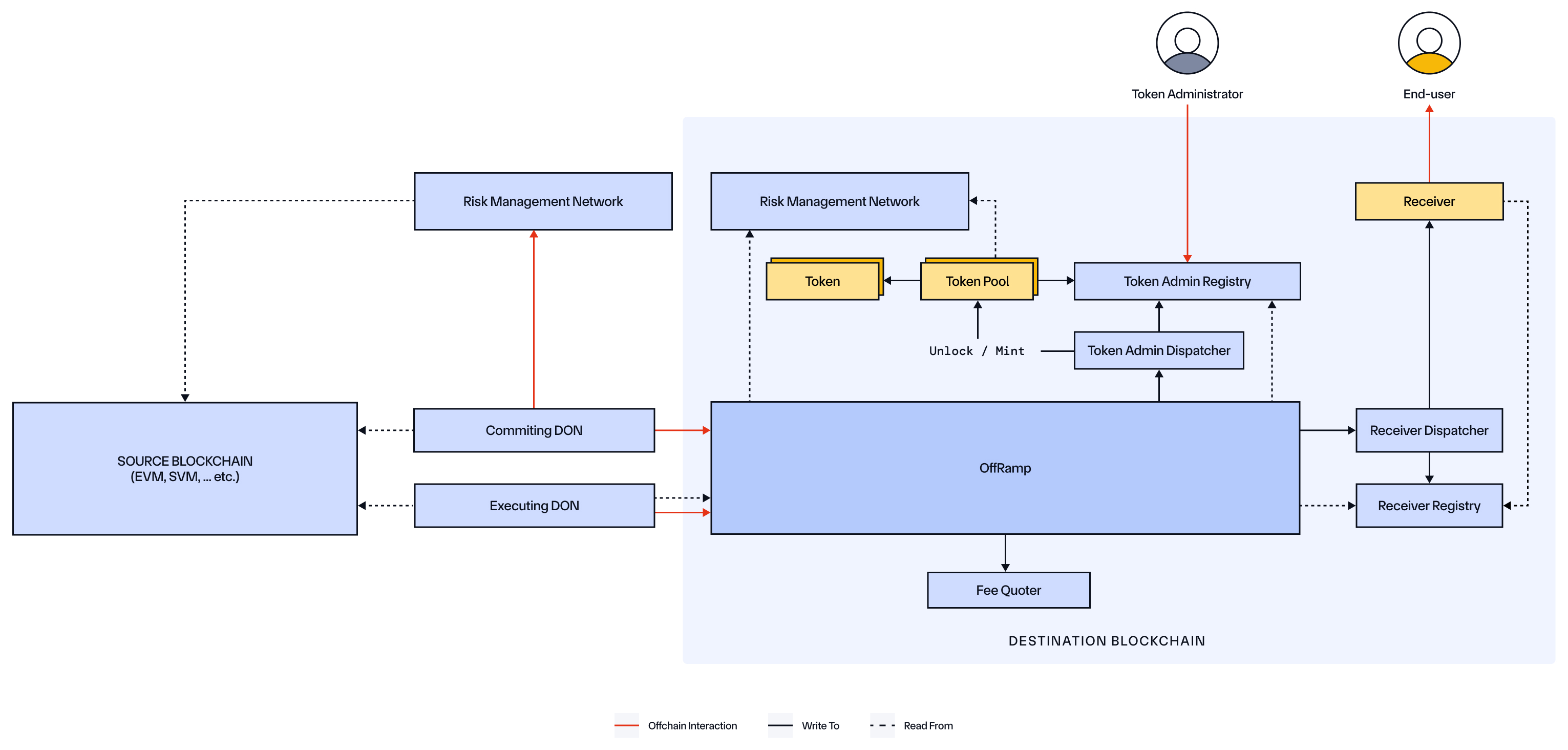

Destination Chain:

Component | Ownership | Role |
---|---|---|
Sender/Receiver | External (User/Module) | An end-user wallet or a custom Move module that initiates a cross-chain message on the source chain and/or receives the message on the destination chain via the ccip_receive function. |
Router | CCIP | The primary, user-facing entry point for sending outbound messages from Aptos. It validates the destination chain, determines the correct OnRamp version to use, and forwards the ccip_send call. |
OnRamp | CCIP | A module that processes outbound messages on the source chain. It validates parameters, calculates fees by calling the FeeQuoter, manages token interactions with Token Pools via the TokenAdminDispatcher, increments sequence numbers, and emits a CCIPMessageSent event that offchain DONs observe. |
Nonce Manager | CCIP | A module that tracks outbound nonces for messages on a per-destination-chain and per-sender basis, ensuring ordered message processing where required. |
OffRamp | CCIP | A destination chain module that receives committed message roots from the offchain DON. It verifies these roots, checks the RMN Remote for curses, executes messages by verifying their Merkle proofs, and dispatches token/data payloads to their final destinations. It emits an ExecutionStateChanged event upon completion. |
Fee Quoter | CCIP | A module that calculates the total fee required for a cross-chain message. It uses onchain price data for tokens and destination chain gas to provide an accurate cost estimate in the user's chosen fee_token. |
Token Admin Dispatcher | CCIP | A dispatcher module that acts as a middleman between the OnRamp /OffRamp and the TokenAdminRegistry. It ensures that only authorized CCIP modules can initiate token lock, burn, release, or mint operations. |
Token Admin Registry | CCIP | A module that acts as a central registry and maps a given token's address to its designated Token Pool module. It also manages administrative roles for each token, such as who can update its pool configuration. |
Receiver Dispatcher | CCIP | A dispatcher module that ensures only the authorized OffRamp module can call the ccip_receive function on a registered receiver module. It uses the ReceiverRegistry to verify the destination. |
Receiver Registry | CCIP | A module where custom Move modules can register themselves as valid CCIP message receivers. This registration is necessary for the OffRamp to be able to dispatch data and tokens to them. |
Token Pools | External (Token Developer) | Specialized modules that handle cross-chain token transfers. Used by the Token Admin Dispatcher for dispatch_lock_or_burn operations on the source blockchain and dispatch_release_or_mint operations on the destination blockchain. |
Token | External (Token Developer) | A fungible asset created on Aptos. |
RMN Remote | CCIP | A module that maintains a list of "cursed" (i.e., blocklisted) chains. Various CCIP modules query this component to ensure they are not interacting with a cursed chain before processing a message. |
Typical Lifecycle of a Message
Source Blockchain (Aptos)
This outlines the process when initiating a CCIP transaction from the Aptos blockchain.
-
Preparation
-
The Sender (a user's wallet or another module) prepares the information for a CCIP Message, including:
- Receiver: A byte array representing the destination address (e.g., a 20-byte EVM address).
- Data payload: Arbitrary bytes to be delivered to the receiver.
- Tokens and amounts (if applicable).
- Fee token: The address of the token for paying fees (e.g., native APT or LINK).
- Extra Arguments: An encoded byte vector containing destination-specific parameters, like a gas limit for EVM.
-
The Sender calls the
ccip_router::router::get_fee
view function to determine the total CCIP fee required for the message. This function internally calls theFee Quoter
module for the cost calculation. -
The Sender prepares to call the
ccip_router::router::ccip_send
entry function. Unlike EVM and SVM chains, a separate token approve transaction is not required. The user's signature on theccip_send
transaction itself authorizes the CCIP modules to withdraw the necessary tokens and fees from the sender's account.
-
-
Sending
- When the
ccip_send
transaction is executed:-
The
Router
module, as the entry point, performs initial validations and forwards the call to the appropriateOnRamp
module. -
The
OnRamp
module executes the core logic:- Verifications: It ensures that the destination chain is not cursed by checking with the
RMN Remote
module. - Fee Collection: It withdraws the required fee from the sender's fungible asset store. If the fee_token_store address is specified as 0x0, the module automatically resolves to the primary_fungible_store corresponding to the sender's account and the chosen fee_token.
- Sequence Management: It increments the sequence number for the given destination chain. If required, it also interacts with the
Nonce Manager
to handle ordered message nonces. - Token Handling (if applicable): For each token in the message, the
OnRamp
withdraws the funds from the sender's token store and calls theToken Admin Dispatcher
. This dispatcher uses theToken Admin Registry
as a secure state machine:- It first calls
start_lock_or_burn
on the registry to store the message context (sender, receiver, etc.). - It then invokes the appropriate Token Pool's
lock_or_burn
function. - The Token Pool module, in turn, calls back into the registry to securely
get_lock_or_burn_input
and, after processing,set_lock_or_burn_output
. This secure callback pattern ensures token operations are only performed within a valid CCIP transaction context.
- It first calls
- Verifications: It ensures that the destination chain is not cursed by checking with the
-
Event Emission: A unique messageId is generated, and the
OnRamp
emits aCCIPMessageSent
event containing the full, sequenced message details.
-
- When the
-
Initial Offchain Processing
- The CCIP Committing DON monitors the Aptos blockchain for the
CCIPMessageSent
event and begins processing the message offchain to prepare it for commitment on the destination chain.
- The CCIP Committing DON monitors the Aptos blockchain for the
Destination Blockchain (Aptos)
This outlines the process when Aptos is the receiving chain for a CCIP message.
-
Commit Phase
- The final OCR report from the Committing DON, containing Merkle roots of batched messages and any price updates, is submitted to the
OffRamp
module'scommit
function. - The
OffRamp
verifies the DON's signatures. - If the report includes blessed Merkle roots, the
OffRamp
verifies the RMN signatures. - If the report contains price updates, the
OffRamp
calls theFee Quoter
module to update its onchain token and gas price data. - The
OffRamp
stores the verified Merkle root and emits aCommitReportAccepted
event, confirming the messages are ready for execution.
- The final OCR report from the Committing DON, containing Merkle roots of batched messages and any price updates, is submitted to the
-
Secondary Offchain Processing
- The CCIP Executing DON monitors for the
CommitReportAccepted
event. For each message in the committed batch, the DON computes its specific Merkle proof. Each message is then submitted in a separate transaction to the Aptos blockchain.
- The CCIP Executing DON monitors for the
-
Execution Phase
- When the Executing DON calls the
OffRamp
module'sexecute
function, theOffRamp
first verifies the message's Merkle proof against a stored Merkle root. It performs several validations, including checking theRMN Remote
module and ensuring the message has not already been executed.- If the message includes tokens, the
OffRamp
calls theToken Admin Dispatcher
. This dispatcher follows a secure callback pattern using theToken Admin Registry
: it initiates arelease_or_mint
operation, which invokes the correct Token Pool. The pool then calls the registry to get its input data, mints or releases the tokens, and sets the output. The released tokens are then deposited into the receiver's primary fungible store. - If the message contains arbitrary data, the
OffRamp
calls theReceiver Dispatcher
. The dispatcher does not pass the message data directly. Instead, it securely stores the payload in theReceiver Registry
and then triggers theccip_receive
entry function of the registered receiver module. The receiver module, in turn, must call receiver_registry::get_receiver_input
within its own execution to securely fetch the message payload it is meant to process. - The
OffRamp
emits a finalExecutionStateChanged
event with the outcome. Due to the atomic nature of Aptos transactions, a successfully processed message will have a state ofSUCCESS
(2). If the transaction fails for any reason, it fully reverts, and the message remainsUNTOUCHED
(0), allowing for a later retry. - The
OffRamp
module also provides amanually_execute
function. If automated execution by the DON fails, this function can be permissionlessly called after a configured time delay to ensure the message can still be processed. For more information, read the manual execution page.
